Home > Outdoor Products > Semi-Automatic Tee-up System

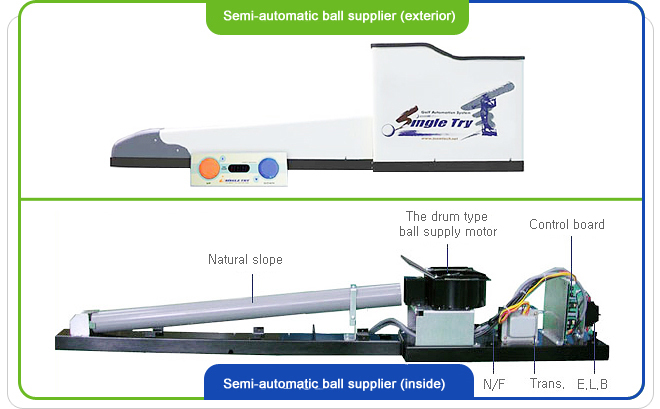

Aesthetic design integrated with ball box, control unit and supply unit
Ball storage capacity of more than 200 balls
Stable ball supply and noise minimization by employing the drum type ball supply motor
Full automatic driving method by Micom control

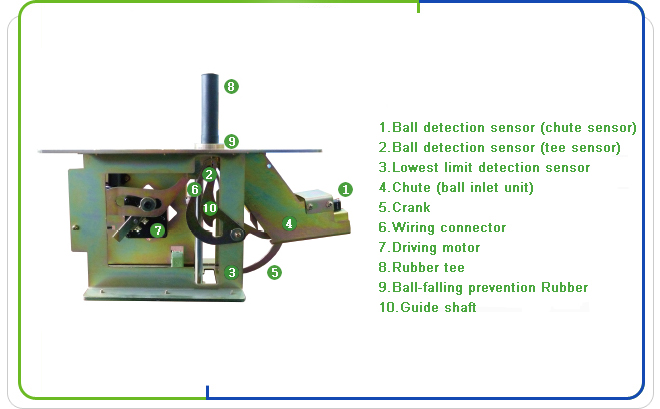

If the ball is removed from the rubber tee (after shot), tee-up sensor detects the absence
The motor starts operating and the rubber tee is lowered to the lowest limit sensor unit
At the same time as the rubber tee is lowered, a ball is placed on the rubber tee by the crank
Rubber tee is elevated by the reverse revolution of motor
When the ball absence is detected by the chute sensor, a ball is supplied from ball box
